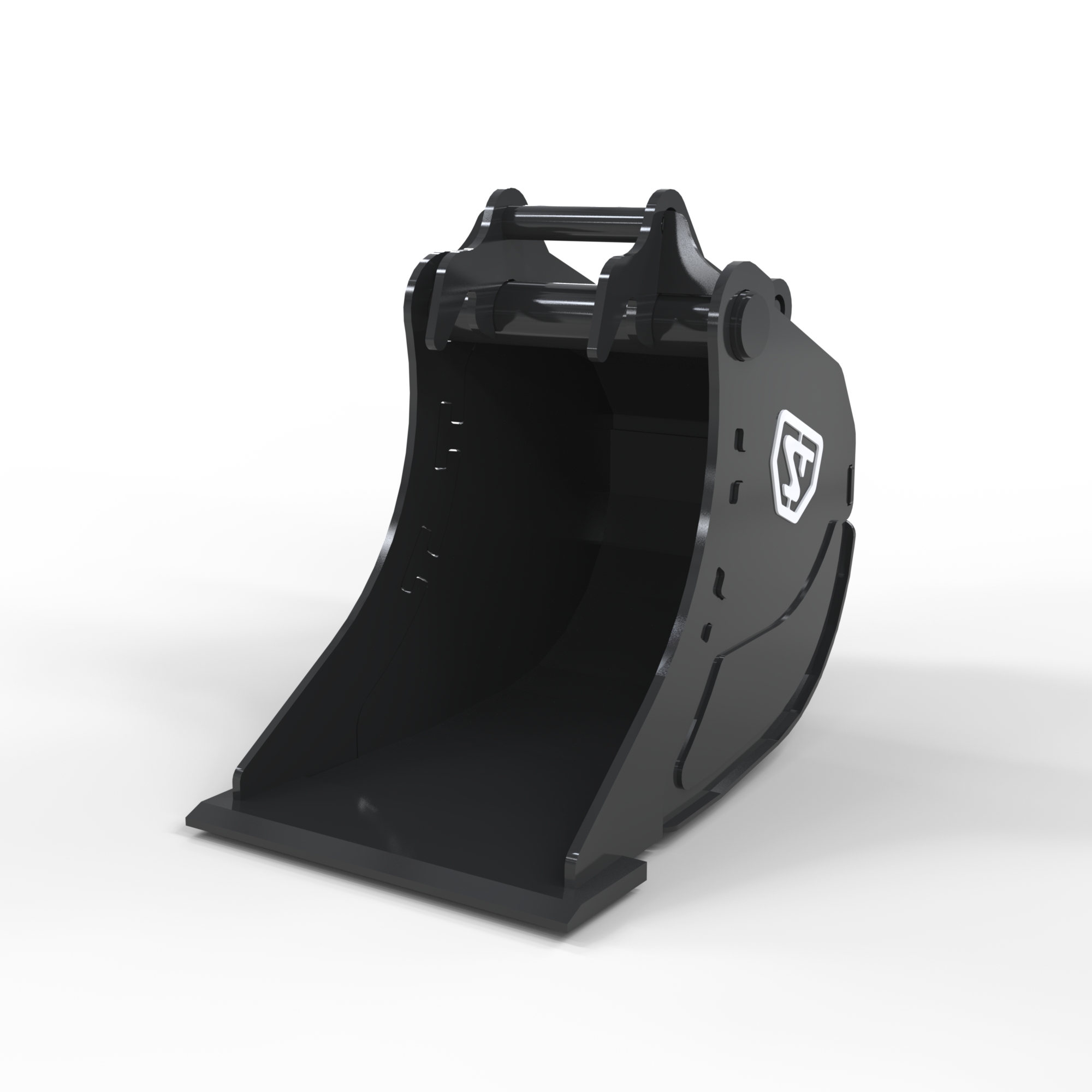

Digging Bucket
Mini digging bucket, designed for precise excavation and everyday performance in construction, landscaping and utility applications.
Designed for mini / midi excavators from 1 to 10 tonnes, the STEC Mini Digging Bucket combines strength, precision and long service life. Optimized bucket geometry ensures efficient penetration, smooth bucket filling and fast cycle times, helping operators maximize productivity in every job. Reinforced wear areas and robust construction reduce maintenance requirements and extend service life, even in abrasive conditions.
The bucket is available with either a smooth cutting edge or a tooth configuration. STEC can supply adapters and teeth from most leading tooth system manufacturers, including Italricambi®, ESCO®, BYG®, ITR®, MTG® and others, allowing customers to match the bucket to their preferred system and operating requirements.
Explore in 3D
Drag to rotate, scroll to zoom, right-click to pan.
Product imagery
Browse photos of the product. Click any image to expand.
Digging Bucket — technical data
| MACHINE SIZE (t) | PRODUCT CODE | VOLUME | HITCH | WIDTH (mm) | WEIGHT (kg) | EDGE (mm) | TOOTH |
|---|---|---|---|---|---|---|---|
| 1 - 2.5 t | Stec DB 55L S30/180 | 55 L | S30/180 | 450 | 60 | 16 | Optional |
| 1 - 2.5 t | Stec DB 65L S30/180 | 65 L | S30/180 | 500 | 65 | 16 | Optional |
| 1 - 2.5 t | Stec DB 75L S30/180 | 75 L | S30/180 | 550 | 70 | 16 | Optional |
| 2 - 4 t | STEC DB 100L S40 | 100 L | S40 | 500 | 100 | 20 | Optional |
| 2 - 4 t | STEC DB 130L S40 | 130 L | S40 | 600 | 110 | 20 | Optional |
| 2 - 4 t | STEC DB 160L S40 | 160 L | S40 | 700 | 125 | 20 | Optional |
| 4 - 6 t | STEC DB 200L S40 | 200 L | S40 | 600 | 150 | 20 | Optional |
| 4 - 6 t | STEC DB 270L S40 | 270 L | S40 | 750 | 180 | 20 | Optional |
| 4 - 6 t | STEC DB 340L S40 | 340 L | S40 | 900 | 200 | 20 | Optional |
Final dimensions, weight class and configuration are specified per machine. Contact us for a build sheet.
