Excavator Attachment · GB / GBR
Grading Beam
Leveling grading beam available with a fixed blade (GB) or roller (GBR).
GB / GBRSTEC
Product

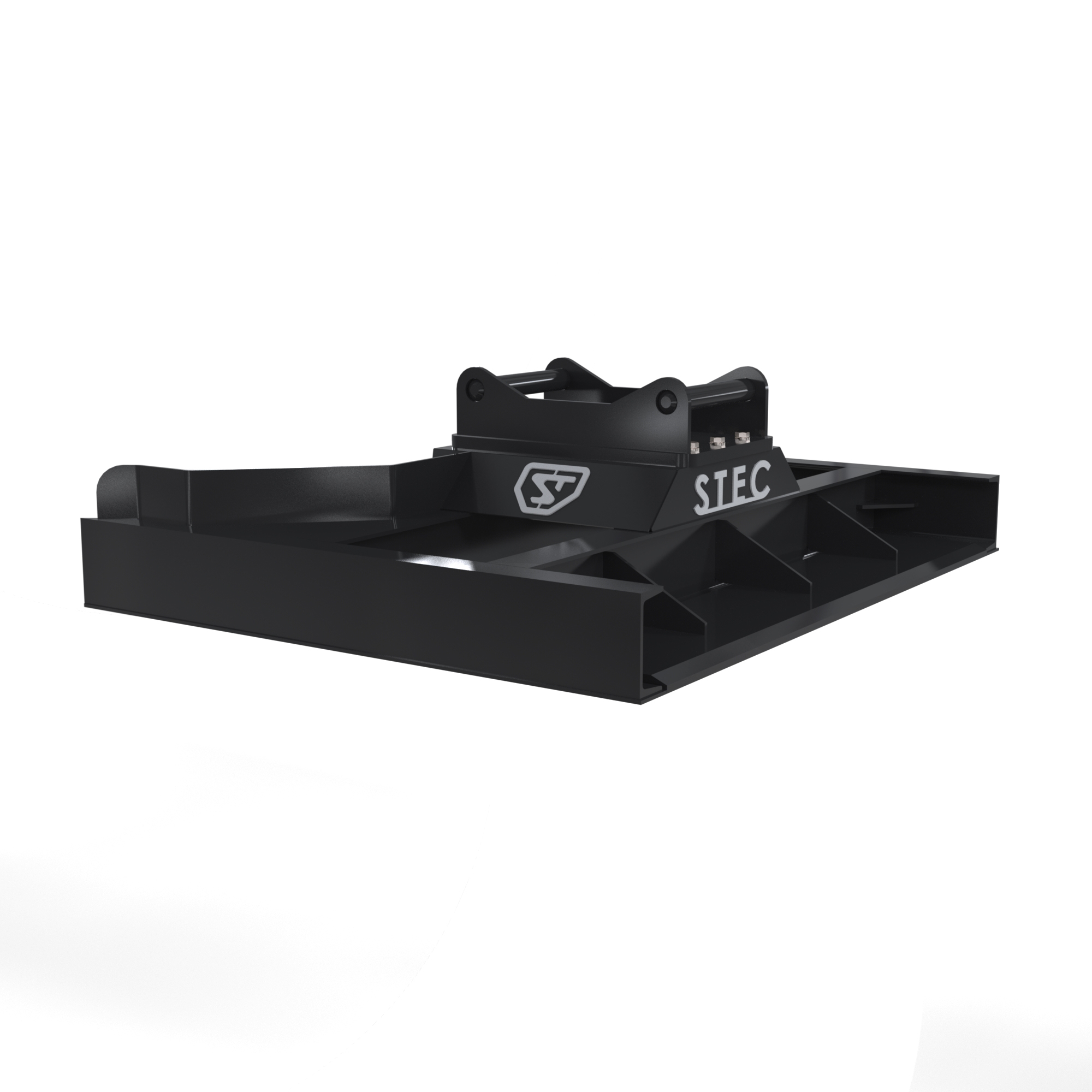

STEC Grading Beam (GB) features a robust, stable design for efficient grading and levelling of large areas. Material can be carried within the beam while simultaneously being distributed and levelled.

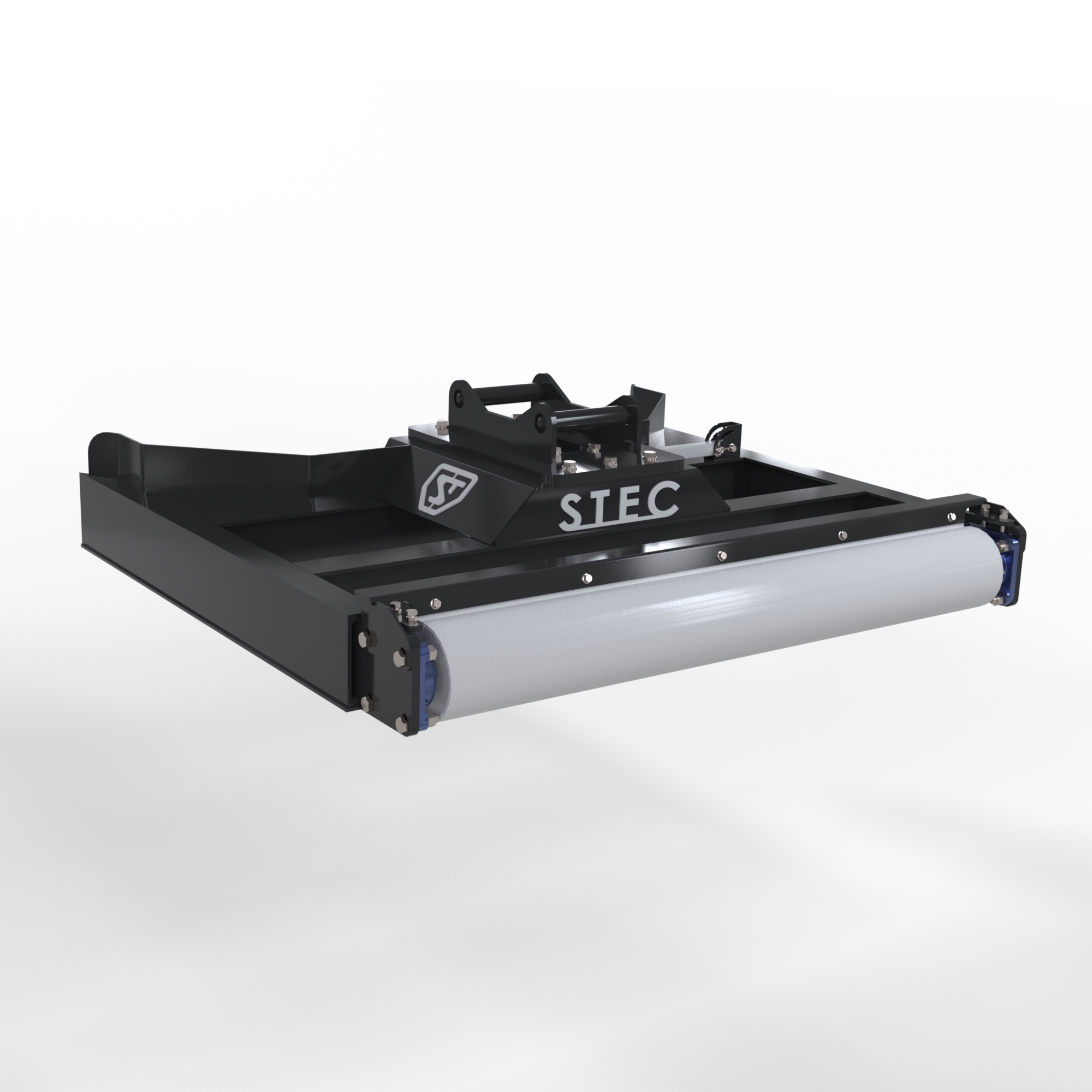

STEC Grading Beam with Roller (GBR) combines grading and surface finishing in one tool, enabling fast and accurate preparation of large areas with minimal passes.
Interactive 3D Model
Explore in 3D
Drag to rotate, scroll to zoom, right-click to pan.
Gallery
Product imagery
Browse photos of the product. Click any image to expand.
Preparing 3D viewer
Technical Specifications
Grading Beam — technical data
| MACHINE SIZE (t) | PRODUCT CODE | WIDTH (MM) | HITCH | LENGTH (A) | WEIGHT (KG) | EDGE / ROLLER (mm) |
|---|---|---|---|---|---|---|
| 10-18 | STEC GB 15 | 1500 | S60 | 1200 | 245 | 25x250 |
| 10-18 | STEC GBR 15 | 1500 | S60 | 1350 | 260 | Ø 170 |
| 10-18 | STEC GB 20 | 2000 | S60 /S70 | 1200 | 370 | 25x250 |
| 10-18 | STEC GBR 20 | 2000 | S60 / S70 | 1350 | 400 | Ø 170 |
| 21-35 | STEC GB 25 | 2500 | S60 / S70 / S80 | 1600 | 470 | 30x300 |
| 21-35 | STEC GBR 25 | 2500 | S60 / S70 / S80 | 1800 | 490 | Ø 220 |
| 28-50 | STEC GB 30 | 3000 | S70 / S80 | 1600 | 670 | 30x300 |
| 28-50 | STEC GBR 30 | 3000 | S70 / S80 | 1800 | 850 | Ø 220 |
Final dimensions, weight class and configuration are specified per machine. Contact us for a build sheet.
