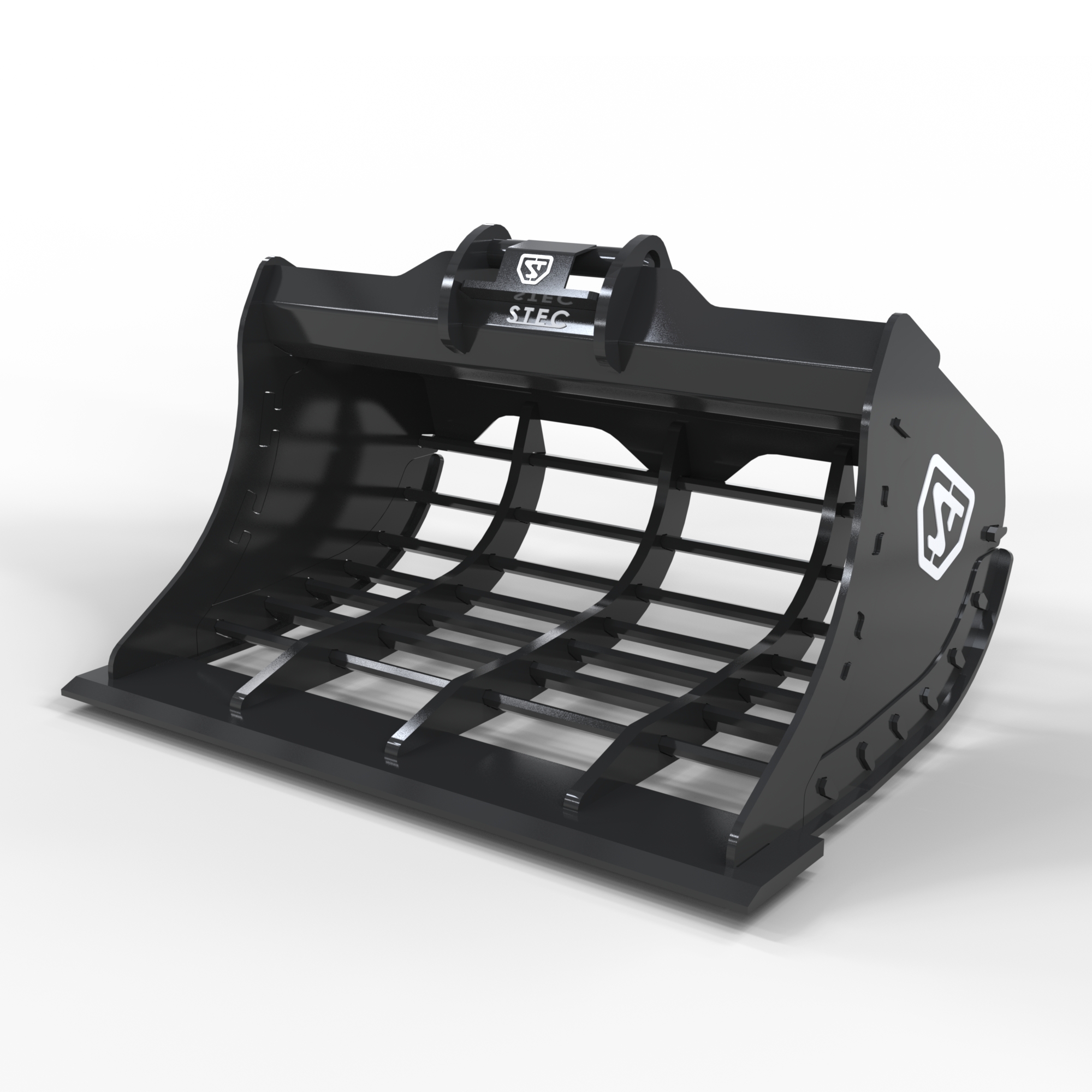

Grading Screening Bucket
Wide-profile screening bucket designed for efficient grading and integrated material separation.
STEC PB SC screening bucket is designed for efficient material separation and long service life. Its dedicated screening bucket geometry, featuring an increased roof angle, improves material flow and screening performance. Equipped with premium Olofsfors® screening bars and a reinforced cutting edge, the bucket delivers excellent wear resistance, structural strength, and reliable performance in demanding applications.
Typical applications include topsoil screening, aggregate processing, landscaping, recycling, and the separation of stones and oversized material from soil and fill materials.
Explore in 3D
Drag to rotate, scroll to zoom, right-click to pan.
Product imagery
Browse photos of the product. Click any image to expand.
Grading Screening Bucket — technical data
| MACHINE SIZE (t) | PRODUCT CODE | VOLUME | HITCH | WIDTH (MM) | WEIGHT (KG) | EDGE (mm) | bolt-on blade (optional) |
|---|---|---|---|---|---|---|---|
| 10-18 | STEC PB SC 05 | 0.5 m3 | S60 | 1500 | 390 | 20 | yes |
| 10-18 | STEC PB SC 06 | 0.6 m3 | S60 | 1600 | 530 | 25 | yes |
| 10-25 | STEC PB SC 07 | 0.7 m3 | S60 / S70 | 1650 | 570 | 30 | yes |
| 10-25 | STEC PB SC 08 | 0.8 m3 | S60 / S70 | 1700 | 650 | 30 | yes |
| 21-35 | STEC PB SC 10 | 1.0 m3 | S70 | 1800 | 720 | 35 | yes |
| 21-35 | STEC PB SC 12 | 1.2 m3 | S70 | 1900 | 1060 | 35 | yes |
| 21-35 | STEC PB SC 14 | 1.4 m3 | S70 / S80 | 1900 | 1160 | 40 | yes |
| 21-35 | STEC PB SC 16 | 1.6 m3 | S70 / S80 | 1900 | 1210 | 40 | yes |
| 28-50 | STEC PB SC 18 | 1.8 m3 | S80 | 2000 | 1380 | 40 | yes |
| 28-50 | STEC PB SC 20 | 2.0 m3 | S80 | 2400 | 1950 | 50 | yes |
Final dimensions, weight class and configuration are specified per machine. Contact us for a build sheet.
