Excavator Attachment · QC
Quick Coupler
Hydraulic S-Standard quick coupler for excavators, enabling fast attachment changes without leaving the cab.
QCSTEC
Product

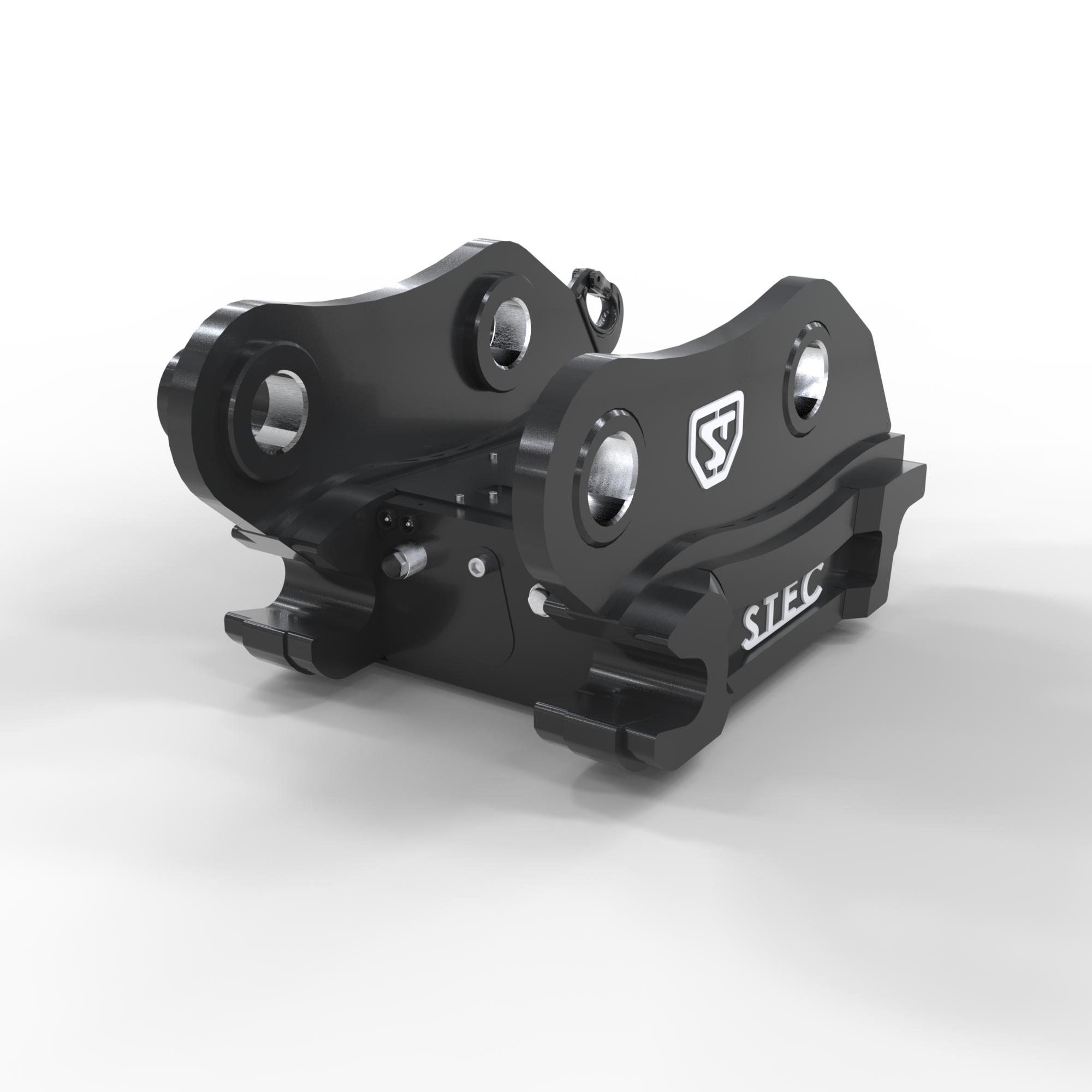

The STEC QC quick coupler is a mechanical or hydraulic coupling system for excavators. It connects buckets, grapples, rippers, and other attachments to the machine boom.
All our quick couplers are equipped with a certified lifting hook and hydraulic check-valve. The quick coupler is also fitted with safety pins that secure the front shaft of the work tool, reducing the risk of the tool dropping during operation.
Interactive 3D Model
Explore in 3D
Drag to rotate, scroll to zoom, right-click to pan.
Gallery
Product imagery
Browse photos of the product. Click any image to expand.
Preparing 3D viewer
Technical Specifications
Quick Coupler — technical data
| MACHINE SIZE (t) | PRODUCTION CODE | OPTION 1 | A (mm) | B (mm) | C (mm) | WEIGTH |
|---|---|---|---|---|---|---|
| 10-18 | STEC QC S60 H | Hydraulic | 480 | 340 | 60 | 180 |
| 16-35 | STEC QC S70 H | Hydraulic | 600 | 450 | 70 | 280 |
| 30-50 | STEC QC S80 H | Hydraulic | 670 | 590 | 80 | 395 |
| 40-80 | STEC QC S90 H | Hydraulic | 750 | 750 | 90 | 890 |
Final dimensions, weight class and configuration are specified per machine. Contact us for a build sheet.
