Excavator Attachment MINI · QC
Quick Coupler
Mechanical and hydraulic quick coupler for mini / midi excavators (1-10 t), enabling fast attachment changes without leaving the cab.
QCSTEC
Product

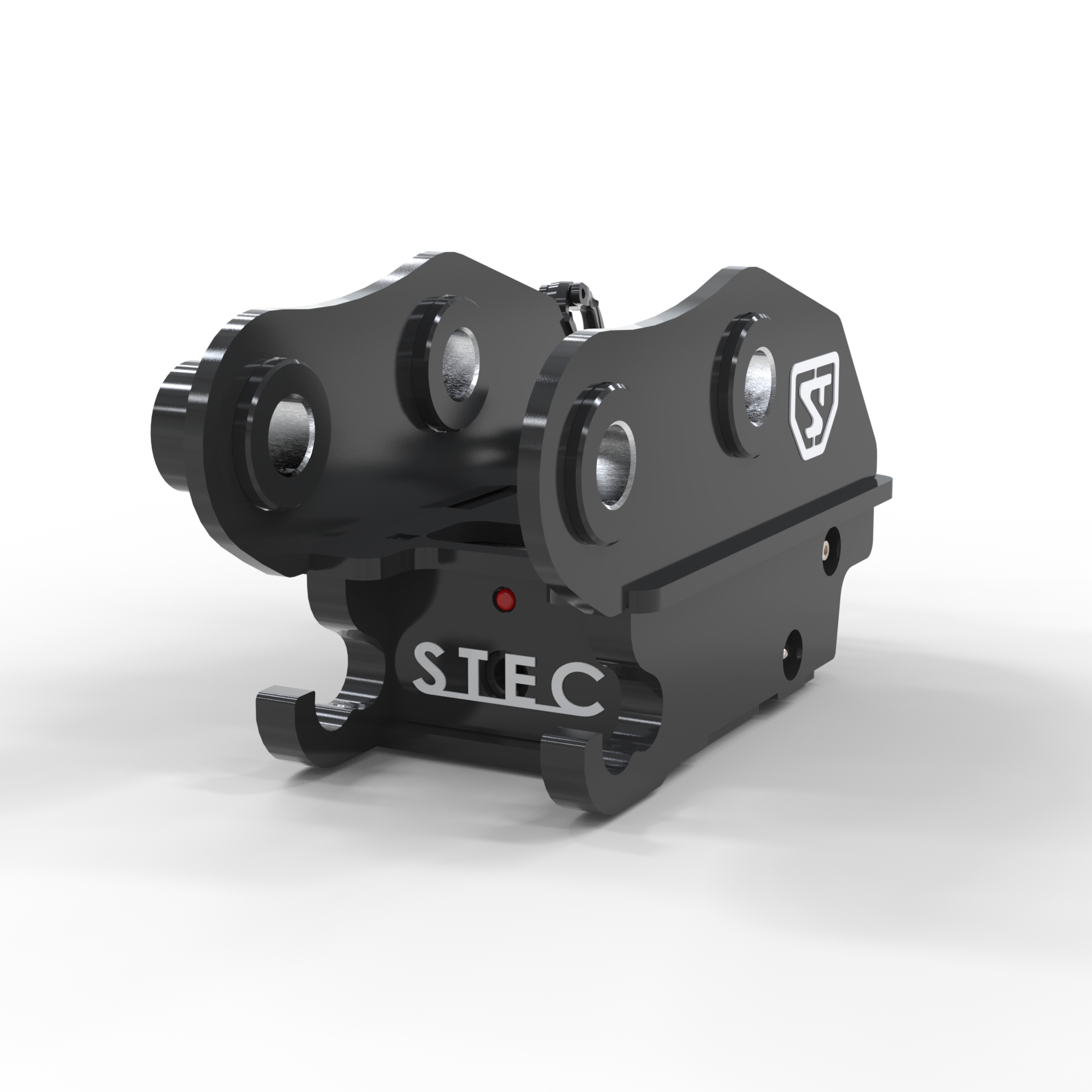

The STEC Mini QC quick coupler is a mechanical or hydraulically operated coupling system designed for mini and midi excavators from 1 to 10 tonnes. It connects buckets, grapples, rippers and other attachments to the stick of the machine.
All our quick couplers are equipped with a certified lifting hook.
Interactive 3D Model
Explore in 3D
Drag to rotate, scroll to zoom, right-click to pan.
Gallery
Product imagery
Browse photos of the product. Click any image to expand.
Preparing 3D viewer
Technical Specifications
Quick Coupler — technical data
| MACHINE SIZE (t) | PRODUCTION CODE | OPTION 1 | A (mm) | B (mm) | C (mm) | WEIGTH |
|---|---|---|---|---|---|---|
| 0.5-2.5 | STEC QC S30/180 M | Manual | 230 | 180 | 30 | 30 |
| 0.5-2.5 | STEC QC S30/180 H | Hydraulic | 230 | 180 | 30 | 35 |
| 2-5.5 | STEC QC S40 M | Manual | 300 | 200 | 40 | 40 |
| 2-5.5 | STEC QC S40 H | Hydraulic | 300 | 200 | 40 | 45 |
| 4-7.5 | STEC QC S45 H | Hydraulic | 430 | 290 | 45 | 70 |
| 6-10 | STEC QC S50 H | Hydraulic | 430 | 270 | 50 | 65 |
Final dimensions, weight class and configuration are specified per machine. Contact us for a build sheet.
