Tilting Quick Coupler
Hydraulic tilting quick coupler for mini / midi excavators (1-10 t), combining fast attachment changes with ±90° tilt for precise digging and grading.

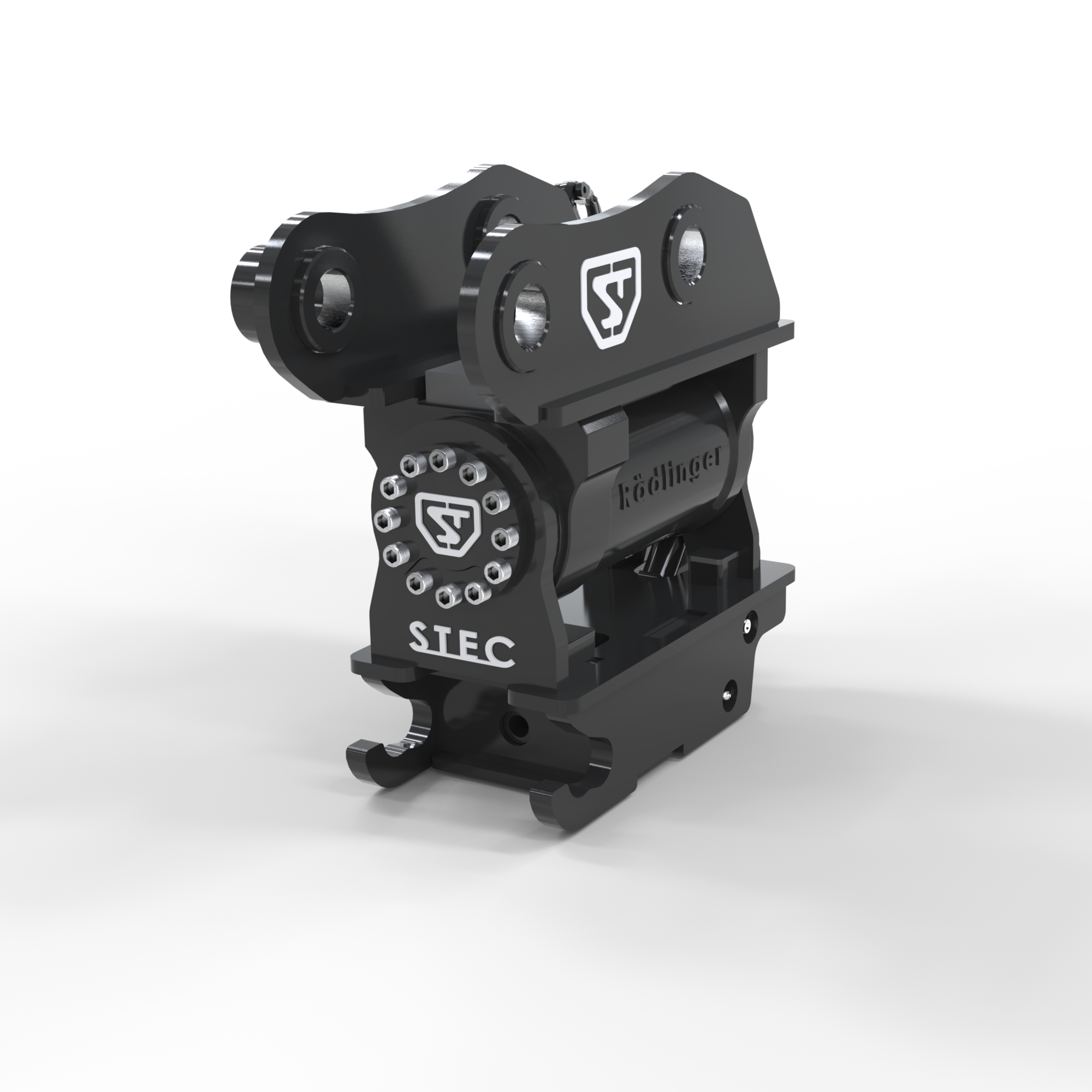

The STEC QCT is a hydraulic tilting quick coupler designed for mini and midi excavators in the 1-10 t class. It combines the productivity of a standard quick coupler with a powerful tilt motor, allowing the operator to angle the attachment left or right without repositioning the machine.
Profiling ditches, shaping slopes and finishing work become faster, safer and more accurate - all controlled from the cab.
Explore in 3D
Drag to rotate, scroll to zoom, right-click to pan.
Product imagery
Browse photos of the product. Click any image to expand.
Tilting Quick Coupler — technical data
| MACHINE SIZE (t) | PRODUCTION CODE | OPTION 1 | A (mm) | B (mm) | C (mm) | WEIGTH |
|---|---|---|---|---|---|---|
| 0.5-2.5 | STEC QCT S30/180 M R390 | Manual | 230 | 180 | 30 | 85 |
| 0.5-2.5 | STEC QCT S30/180 H R390 | Hydraulic | 230 | 180 | 30 | 90 |
| 2-3.8 | STEC QCT S40 M R490 | Manual | 300 | 200 | 40 | 100 |
| 2-3.8 | STEC QCT S40 H R490 | Hydraulic | 300 | 200 | 40 | 105 |
| 2-6 | STEC QCT S40 M R590 | Manual | 300 | 200 | 40 | 120 |
| 2-6 | STEC QCT S40 H R590 | Hydraulic | 300 | 200 | 40 | 125 |
| 4-7.5 | STEC QCT S45 H R790 | Hydraulic | 430 | 290 | 45 | 160 |
| 6-10 | STEC QCT S50 H R1090 | Hydraulic | 430 | 270 | 50 | 170 |
Final dimensions, weight class and configuration are specified per machine. Contact us for a build sheet.
