Excavator Attachment MINI · RTPB
Grading Bucket
Grading bucket for mini / midi excavators (1-10 t).
RTPBSTEC
Product

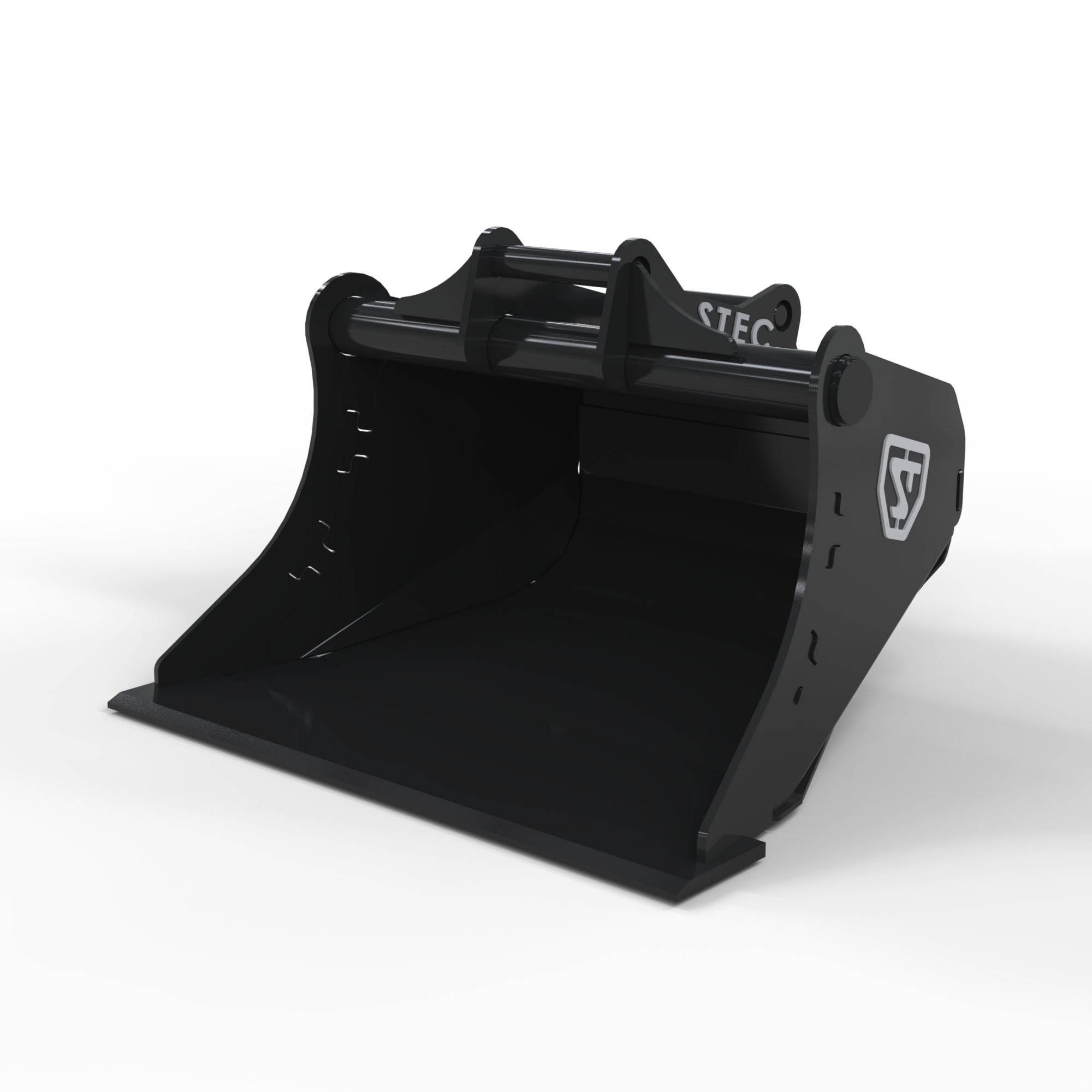

The STEC Mini RTPB is a grading bucket designed for mini and midi excavators from 1 to 10 tonnes.
Typical applications include precision urban earthworks, pipe and cable bedding, slope shaping and confined-space grading work.
Interactive 3D Model
Explore in 3D
Drag to rotate, scroll to zoom, right-click to pan.
Gallery
Product imagery
Browse photos of the product. Click any image to expand.
Preparing 3D viewer
Technical Specifications
Grading Bucket — technical data
| MACHINE SIZE (t) | PRODUCT CODE | VOLUME | HITCH | WIDTH (mm) | WEIGHT (KG) | EDGE (mm) | bolt-on blade (optional) |
|---|---|---|---|---|---|---|---|
| 1 - 2.5 t | Stec RTPB 60L S30/180 | 60L | S30/180 | 700 | 65 | 16 | yes |
| 1 - 2.5 t | Stec RTPB 75L S30/180 | 75L | S30/180 | 800 | 75 | 16 | yes |
| 1 - 2.5 t | Stec RTPB 90L S30/180 | 90L | S30/180 | 900 | 80 | 16 | yes |
| 2 - 6 t | Stec RTPB 145L S40 | 145 L | S40 | 900 | 110 | 16 | yes |
| 2 - 6 t | Stec RTPB 170L S40 | 170 L | S40 | 1000 | 120 | 16 | yes |
| 2 - 6 t | Stec RTPB 195L S40 | 195 L | S40 | 1100 | 130 | 16 | yes |
| 2 - 6 t | Stec RTPB 220L S40 | 220 L | S40 | 1200 | 140 | 16 | yes |
| 4 - 6 t | Stec RTPB 300L S40 | 300 L | S40 | 1300 | 210 | 20 | yes |
| 4 - 6 t | Stec RTPB 340L S40 | 340 L | S40 | 1400 | 230 | 20 | yes |
Final dimensions, weight class and configuration are specified per machine. Contact us for a build sheet.
