Excavator Attachment · CB

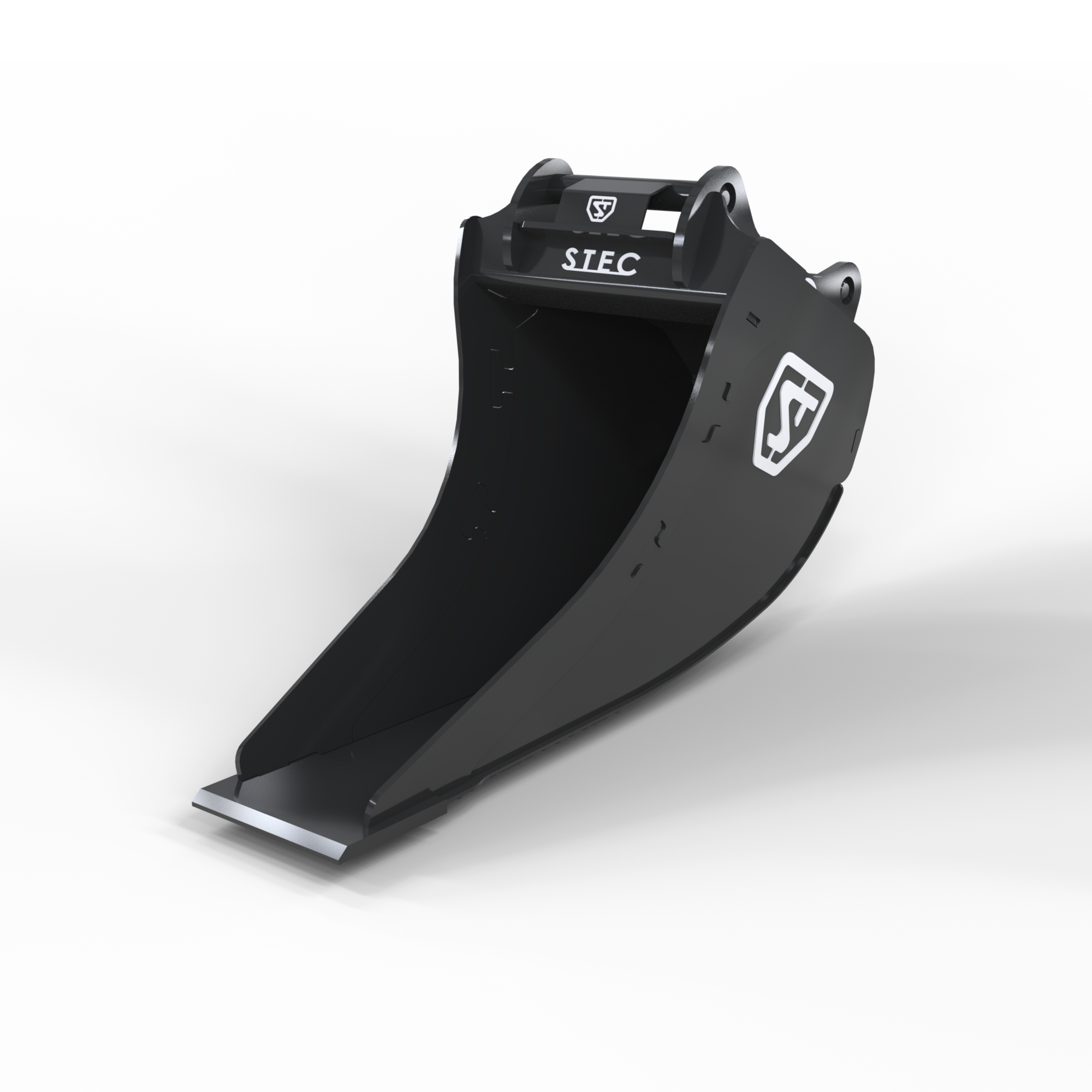

Cable Bucket
Narrow-profile trenching bucket for utility, drainage and foundation work.
CBSTEC
Product
The STEC CB conical cable bucket has a narrow shell and deep profile with a flat back wall, producing clean trench geometry with minimal over-dig. The aggressive penetration lip is sized for compacted ground.
Typical applications include utility trenching, drainage and culvert work, foundation and footing excavation and cable or pipeline installation.
Interactive 3D Model
Explore in 3D
Drag to rotate, scroll to zoom, right-click to pan.
Gallery
Product imagery
Browse photos of the product. Click any image to expand.
Preparing 3D viewer
Technical Specifications
Cable Bucket — technical data
| MACHINE SIZE (t) | MODEL | VOLUME | HITCH | WIDTH (MM) | WEIGHT (KG) | EDGE (mm) | TOOTH OR BLADE (OPTIONAL) |
|---|---|---|---|---|---|---|---|
| 10-18 | STEC CB 03_450 | 0.3 m³ | S60 | 420 | 340 | 30 | yes |
| 10-25 | STEC CB 04_450 | 0.4 m³ | S60 / S70 | 420 | 450 | 30 | yes |
| 21-35 | STEC CB 06_600 | 0.6 m³ | S70 / S80 | 600 | 610 | 40 | yes |
| 21-35 | STEC CB 07_600 | 0.7 m³ | S70 / S80 | 600 | 660 | 40 | yes |
| 21-35 | STEC CB 07_700 | 0.7 m³ | S70 / S80 | 700 | 720 | 40 | yes |
| 21-35 | STEC CB 08_700 | 0.8 m³ | S70 / S80 | 700 | 770 | 50 | yes |
Final dimensions, weight class and configuration are specified per machine. Contact us for a build sheet.
