Excavator Attachment MINI · CB
Cable Bucket
Narrow-profile cable bucket for mini / midi excavators (1-10 t), for utility, drainage and foundation work.
CBSTEC
Product

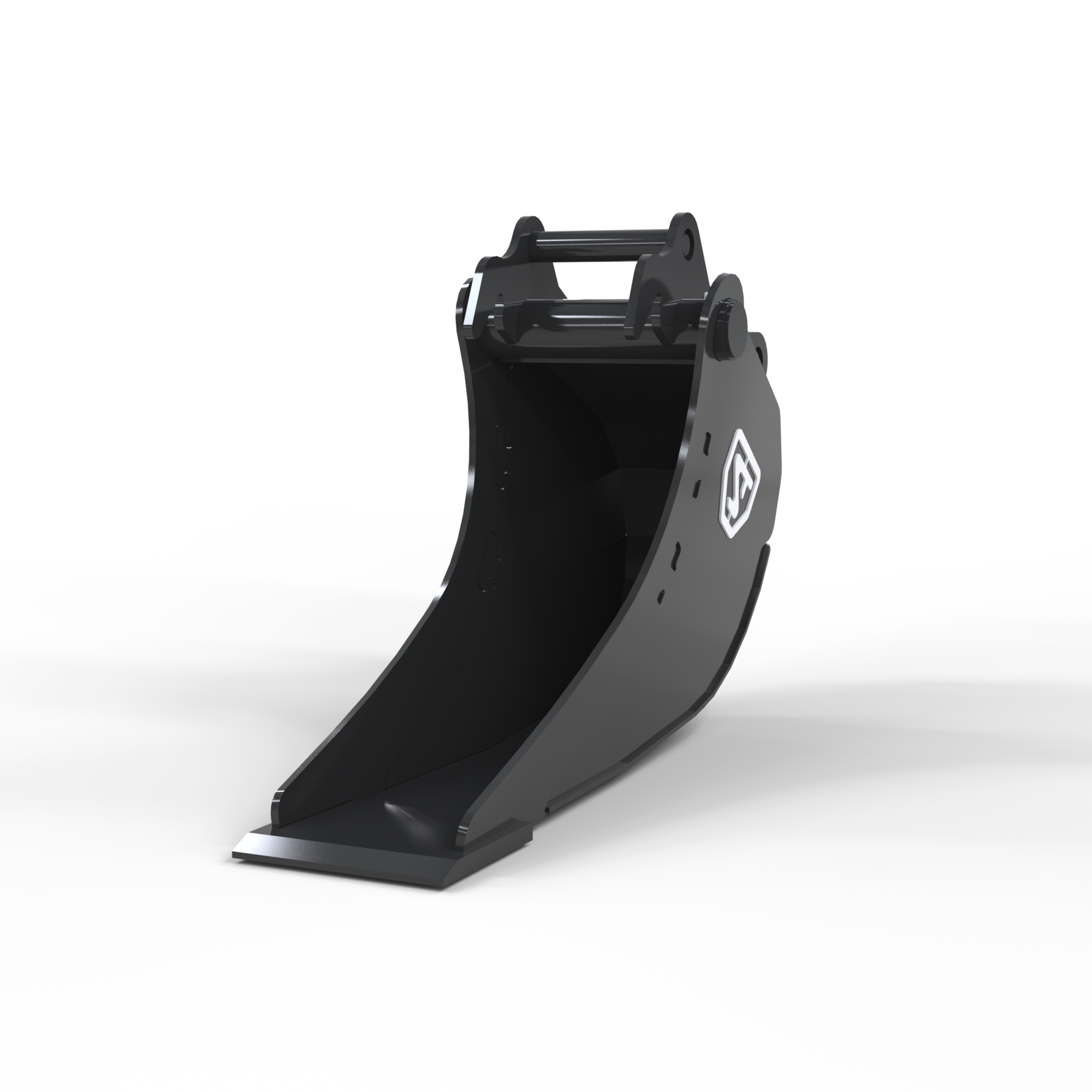

The STEC Mini CB conical cable bucket is designed for mini and midi excavators from 1 to 10 tonnes. Its narrow shell and deep profile with a flat back wall produce clean trench geometry with minimal over-dig, and the aggressive penetration lip is sized for compacted ground.
Typical applications include utility trenching, drainage and culvert work, foundation and footing excavation and cable or pipeline installation.
Interactive 3D Model
Explore in 3D
Drag to rotate, scroll to zoom, right-click to pan.
Gallery
Product imagery
Browse photos of the product. Click any image to expand.
Preparing 3D viewer
Technical Specifications
Cable Bucket — technical data
| MACHINE SIZE (t) | MODEL | VOLUME | HITCH | WIDTH (MM) | WEIGHT (KG) | EDGE (mm) | bolt-on blade or tooth (optional) |
|---|---|---|---|---|---|---|---|
| 1 - 2.5 t | Stec CB 35L S30/180 | 35L | S30/180 | 250 | 45 | 16 | yes |
| 1 - 2.5 t | Stec CB 45L S30/180 | 45L | S30/180 | 300 | 52 | 16 | yes |
| 2 - 4 t | Stec CB 65L S40 | 65L | S40 | 250 | 75 | 20 | yes |
| 2 - 4 t | Stec CB 75L S40 | 75L | S40 | 300 | 80 | 20 | yes |
| 2 - 4 t | Stec CB 100L S40 | 100L | S40 | 400 | 90 | 20 | yes |
| 2 - 6 t | Stec CB 100L S40 | 100L | S40 | 300 | 115 | 20 | yes |
| 2 - 6 t | Stec CB 140L S40 | 140L | S40 | 400 | 130 | 20 | yes |
Final dimensions, weight class and configuration are specified per machine. Contact us for a build sheet.
