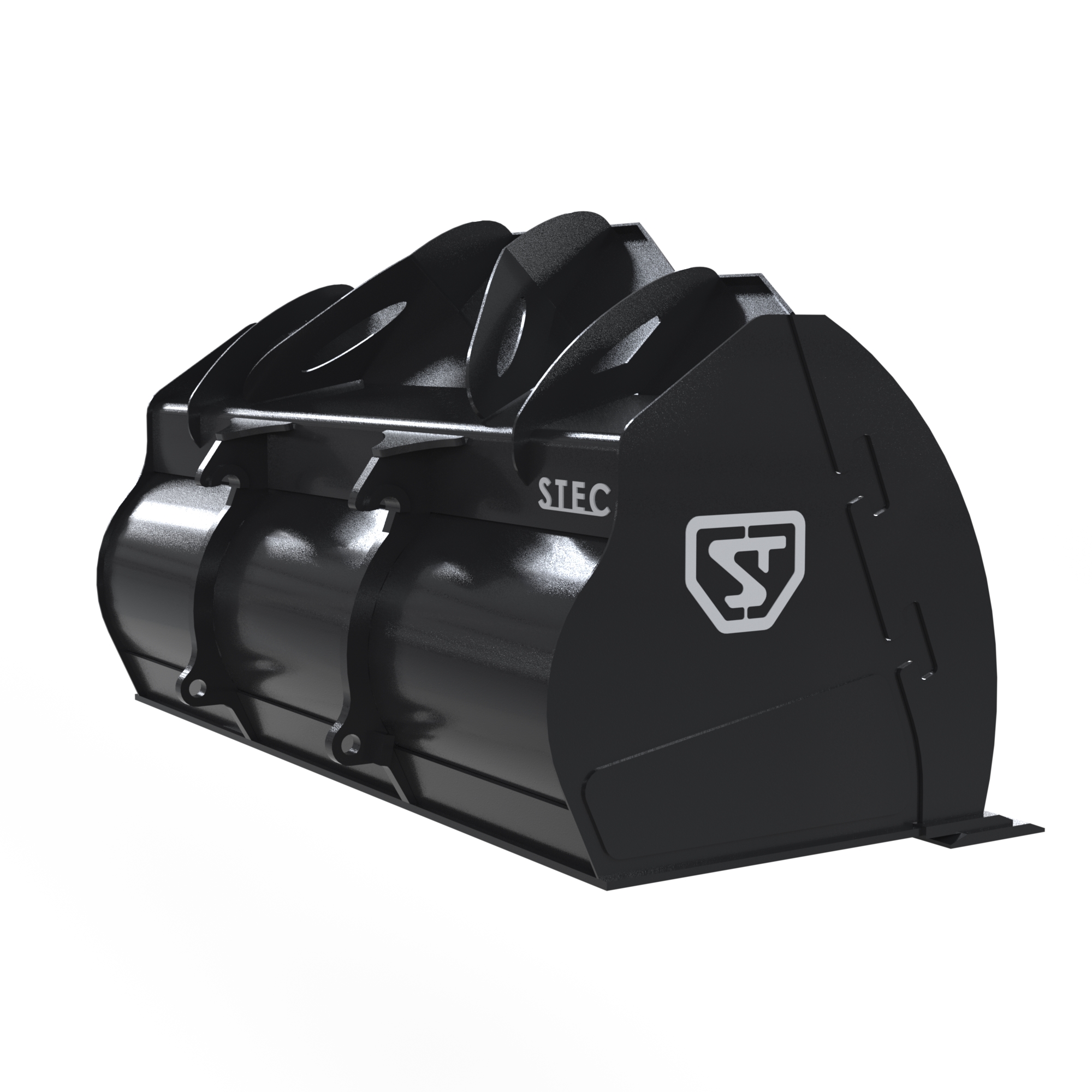

General Bucket — Flat Floor
General wheel loader bucket for quarry loading, aggregate yards, demolition recycling and heavy stockpile work.
The STEC WL GBF is a reinforced general-purpose wheel loader bucket with a wear-resistant shell. The bucket is available with either smooth bolt-on cutting edge or a tooth configuration. STEC can supply adapters and teeth from most leading tooth system manufacturers, including Italricambi®, ESCO®, BYG®, ITR®, MTG® and others, allowing customers to match the bucket to their preferred system and operating requirements.
Typical applications include quarry loading, aggregate yards, demolition recycling and heavy stockpile work.
Explore in 3D
Drag to rotate, scroll to zoom, right-click to pan.
Product imagery
Browse photos of the product. Click any image to expand.
General Bucket — Flat Floor — technical data
| MACHINE SIZE (t) | Production code | VOLUME | Width (mm) | Depth (MM) | Height (MM) | WEIGHT (KG) | HITCH |
|---|---|---|---|---|---|---|---|
| 12-16 | STEC WL GBF 25 | 2.5 m3 | 2530 | 1300 | 1300 | 1260 | Volvo BM 120 |
| 15-20 | STEC WL GBF 30 | 3.0 m3 | 2910 | 1330 | 1470 | 1680 | Volvo BM 120 |
| 18-22 | STEC WL GBF 33 | 3.3 m3 | 2910 | 1370 | 1490 | 1710 | Volvo BM 120 |
| 20-24 | STEC WL GBF 35 | 3.5 m3 | 2910 | 1420 | 1500 | 1750 | Volvo BM 120 |
| 22-38 | STEC WL GBF 40 | 4.0m3 | 3200 | 1440 | 1570 | 2010 | Volvo BM 180 |
| 24-30 | STEC WL GBF 42 | 4.2 m3 | 3200 | 1450 | 1650 | 2210 | Volvo BM 180 |
| 28-35 | STEC WL GBF 46 | 4.6 m3 | 3200 | 1520 | 1700 | 2360 | Volvo BM 180 |
Final dimensions, weight class and configuration are specified per machine. Contact us for a build sheet.
