Wheel Loader Attachment · WL SG

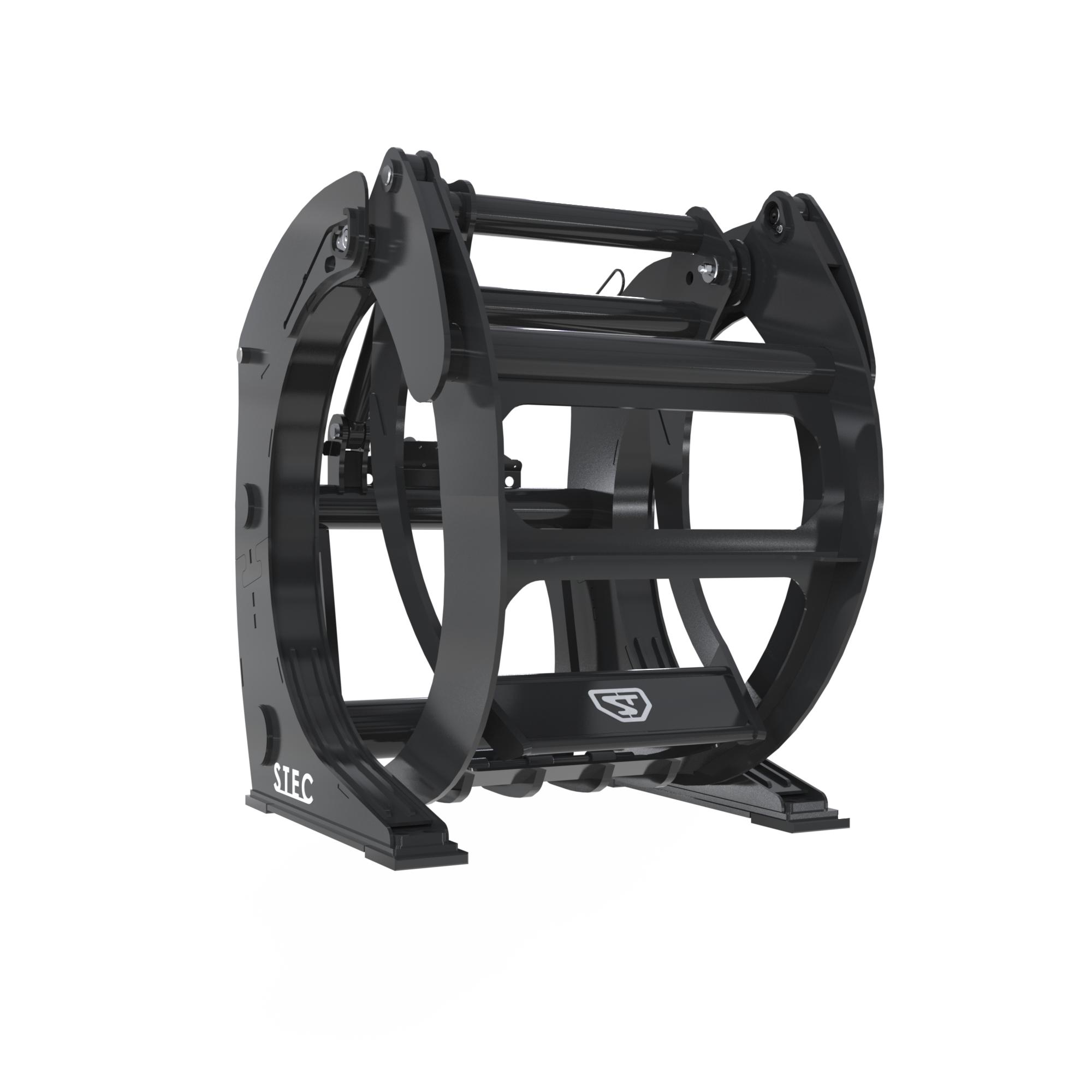

Sorting Grapple
Long-tined sorting grapple for timber stacks, sorting bunkers and unloading work.
WL SGSTEC
Product
Designed for efficient sorting and loading, the grapple features long, straight tines that glide smoothly along the ground, enabling easy filling from timber stacks and sorting bunkers. Its versatile design also makes it well suited for unloading applications.
STEC Sorting Grapple can be ordered with or without inner heel, depending on the required application and material handling needs.
Interactive 3D Model
Explore in 3D
Drag to rotate, scroll to zoom, right-click to pan.
Gallery
Product imagery
Browse photos of the product. Click any image to expand.
Preparing 3D viewer
Technical Specifications
Sorting Grapple — technical data
| MACHINE SIZE (t) | PRODUCT CODE | VOLUME | LENGTH (mm) | WIDTH (mm) | HEIGHT (mm) | WEIGHT (kg) | HITCH | Direct boom |
|---|---|---|---|---|---|---|---|---|
| 18-24 t | STEC WL UG 24 | 2.4 m2 | 1950 | 1600 | 1900 | 1900 | Volvo BM120 | yes |
| 18-24 t | STEC WL UG 24 H | 2.4 m2 | 1950 | 1600 | 1900 | 2200 | Volvo BM120 | yes |
| 25-30 t | STEC WL UG 32 | 3.2 m2 | 2200 | 1750 | 2200 | 2700 | Volvo BM120 | yes |
| 25-30 t | STEC WL UG 32 H | 3.2 m2 | 2200 | 1750 | 2200 | 3200 | Volvo BM120 | yes |
| 26-34 t | STEC WL UG 35 | 3.5 m2 | 2350 | 1800 | 2250 | 3300 | Volvo BM180 | yes |
| 26-34 t | STEC WL UG 35 H | 3.5 m2 | 2350 | 1800 | 2250 | 3800 | Volvo BM180 | yes |
| 28-40t | STEC WL UG 37 | 3.7 m2 | 2450 | 1800 | 2300 | 3400 | Volvo BM180 | yes |
| 28-40t | STEC WL UG 37 H | 3.7 m2 | 2450 | 1800 | 2300 | 3900 | Volvo BM180 | yes |
Final dimensions, weight class and configuration are specified per machine. Contact us for a build sheet.
