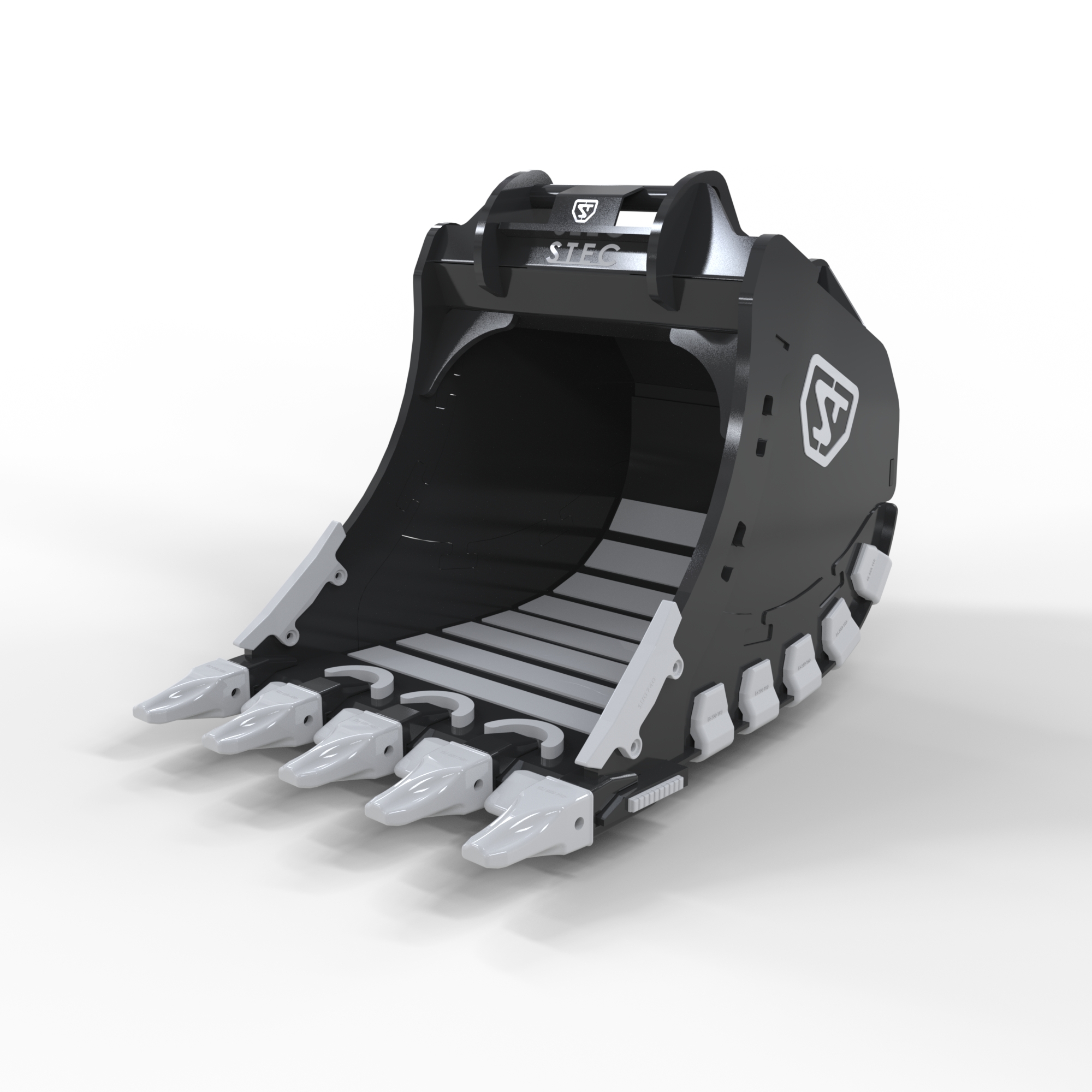

XHD Digging Bucket
Extreme heavy-duty digging bucket for rock, frost and highly abrasive ground.
The STEC XHD extreme heavy-duty digging bucket is reinforced for the most demanding excavation work. The shell, lip and corners are built up with additional wear plate, and the bucket is fitted with an oversized tooth system.
STEC can supply adapters, teeth, wing shroud, heel shrouds, edge protections and bi-metal protections from most leading manufacturers, including Italricambi®, ESCO®, BYG®, ITR®, MTG® and others, allowing customers to match the bucket to their preferred system and operating requirements.
Explore in 3D
Drag to rotate, scroll to zoom, right-click to pan.
Product imagery
Browse photos of the product. Click any image to expand.
XHD Digging Bucket — technical data
| MACHINE SIZE (t) | PRODUCT CODE | VOLUME | HITCH | WIDTH (mm) | WEIGHT (KG) | EDGE (mm) | EDGE TYPE | TOOTH |
|---|---|---|---|---|---|---|---|---|
| 28-50 | STEC DB 20 XHD | 2.0 m³ | S80 | 1640 | 2550 | 60 | Straight | J550 - 4pcs |
| 28-50 | STEC DB 22 XHD | 2.2 m³ | S80 | 1760 | 2650 | 60 | Straight | J550 - 4pcs |
| 40-80 | STEC DB 25 XHD | 2.5 m³ | S90 | 1840 | 3100 | 60 | Straight | J550 - 5pcs |
| 40-80 | STEC DB 25 XHD | 2.5 m³ | S90 | 1840 | 3100 | 60 | Delta | J550 - 4pcs |
| 40-80 | STEC DB 28 XHD | 2.8 m³ | S90 | 2000 | 3200 | 60 | Straight | J550 - 5pcs |
| 40-80 | STEC DB 28 XHD | 2.8 m³ | S90 | 2000 | 3200 | 60 | Delta | J550 - 4pcs |
| 40-80 | STEC DB 30 XHD | 3.0 m³ | S90 | 2000 | 3350 | 60 | Straight | J550 - 5pcs |
| 40-80 | STEC DB 30 XHD | 3.0 m³ | S90 | 2000 | 3350 | 60 | Delta | J550 - 4pcs |
| 40-80 | STEC DB 32 XHD | 3.2 m³ | S90 | 2000 | 3400 | 60 | Straight | J550 - 5pcs |
| 40-80 | STEC DB 32 XHD | 3.2 m³ | S90 | 2000 | 3400 | 60 | Delta | J550 - 4pcs |
Final dimensions, weight class and configuration are specified per machine. Contact us for a build sheet.
